Immerse yourself in real-time tracking possibilities.

The world’s most accurate, fastest and reliable automated tracking solution.

Multi-integrational real-time tracking
to help you achieve the results you want.

Track anything – whether it’s people, objects, vehicles, or animals.

BlackTrax by CAST
01

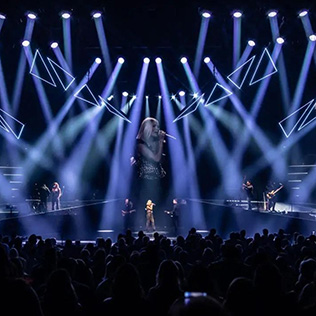

LIGHTING

Create a dynamic visual experience with automated follow spots that trail or highlight a subject as they dance, perform, or speak.

Integration:
BlackTrax by CAST
02

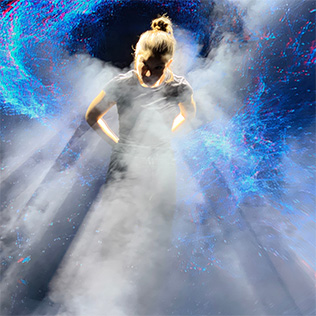

SOUND

Tracks the audio source’s position, movement, and rotation, sending this data to spatial audio systems to accurately place the sound in a 3D space.

Integration:
BlackTrax by CAST
03

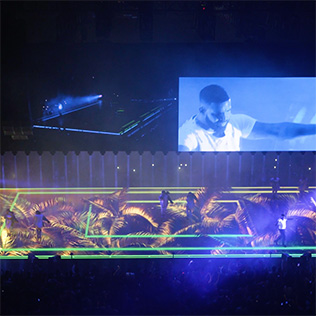

MEDIA

Connect BlackTrax with media servers to create custom media and projection mapping that interacts with and projects onto moving objects for a truly immersive experience.

Integration:
BlackTrax by CAST
04

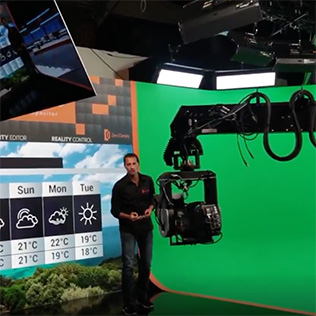

CAMERA

Using the CONVRG software add-on, you can seamlessly bring automated PTZ cameras into the dynamic world of real-time tracking.

Integration:
BlackTrax by CAST
05

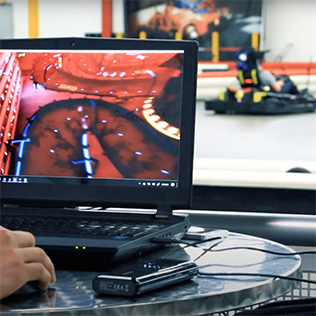

GAMING X/R

Use your preferred media engine to create interactive Extended Reality. Render virtual objects in real time from the camera’s view to produce realistic landscapes and surreal effects.

Integration:
BlackTrax by CAST
BlackTrax by CAST
BlackTrax by CAST
BlackTrax by CAST
06

DRONES

Fly RC drones into the air, with projection mapping.

BlackTrax by CAST
07

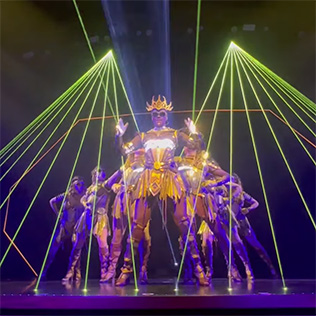

LASERS

The ability to talk to and control lasers and create stunning laser effects.

Integration:
BlackTrax by CAST
BlackTrax Almaty Symphony Orchestra
08

SAFETY

BlackTrax takes workers out of precarious situations, decreasing the number of accidents and injuries on the job.

BlackTrax by CAST
09

CUSTOM

The open source Tracking Protocol (RTTrP) makes it easy to create custom integration with other automated systems.

Integration:
BlackTrax by CAST

Any Venue. Any Size. Anywhere.

BlackTrax by CAST

Fixed locations or part of a full-scale touring production.

BlackTrax by CAST

Small theaters, arenas,
parks, indoor or outdoor events.

BlackTrax by CAST

Flexible, mobile, adaptable and
scalable.

We Track 3D & 6D Positional Data

BlackTrax can capture and pass positional 3D (X,Y,Z) and 6D rotation (yaw, pitch, roll) data to automation controllers.

BlackTrax by CAST

BlackTrax Systems

How it works

BlackTrax is a vision-based system that connects to different third-party applications, such as lighting consoles, media servers, immersive audio systems, game engines, and any other third party that accepts the RTTrPL or RTTrPM open source protocol.

BlackTrax by CAST Sensors

Sensors Capture Moving Signals

BTSensors use a proprietary motion capture driver. Use it to surround the tracking space to capture the motion of the Beacons.

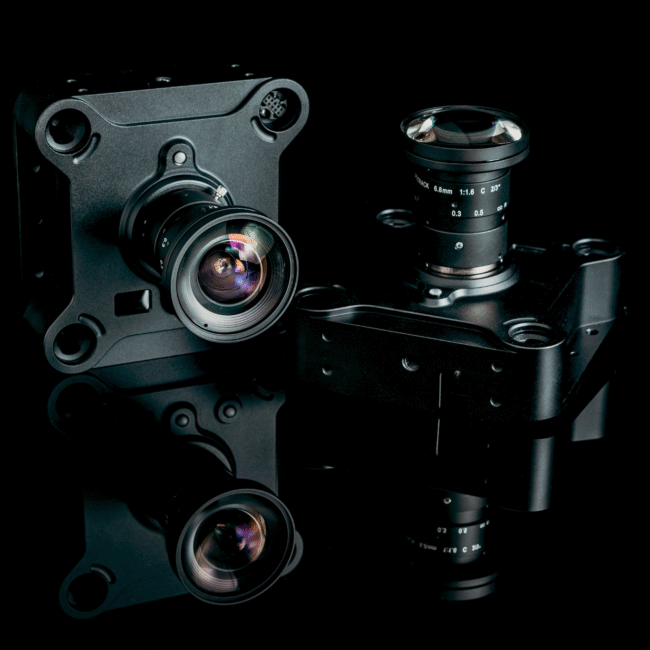

OptiTrack Versa

Versa x22, x41, and x120 outdoor motion capture cameras are now fully compatible with BlackTrax.

  • Compatibility with Versa X22, Versa X41, and Versa X120 cameras.
  • IP66-rated to withstand dust, rain, and harsh environments.
  • Multiple mounting options and a protective weather covering for any setup.
  • Higher resolution for covering larger areas than the standard BT Sensor SX13.



BlackTrax by CAST Optitrak Versa
BlackTrax by CAST Infrared LEDS Pulse Position

Tiny Infrared LEDs Pulse Position

These active light sources send unique infrared light pulses to the BTSensor.

Beacon 2.0

Now with live battery status, performer names, and stringer verification indicators for ultimate control. Plus, Quick Connect stringer ports make setup a breeze, and USB-C charging keeps you powered between shows.

BlackTrax by CAST
BlackTrax by CAST Beacon

Classic LED Beacons

BlackTrax‘s classic LED Beacons are placed on a performer, moving object or scenery, sending the positional data based on the location of an LED in the 3D space.

The BT Beacon can manage up to 3 stringers with LEDs (tracking points) that can be tracked individually or in a group. Each LED pulses at a specific rate with its own unique ID. Track up to 85 beacons or 255 tracking points simultaneously.

Mini Beacons

Smaller and stringer-free, Mini Beacons suit all unscripted, impromptu production needs, including those of larger productions.

Mini Beacons are the perfect answer for interactive showcases, where you want to easily ‘tag’ someone for an interactive display area or include and immerse audiences, hassle-free.

Mini Beacons are always powered on and have a battery life of approximately eight hours, pulsing at 100Hz, the same as the classic BTBeacon.

BlackTrax by CAST Wristband
BlackTraxBACKUP

Mini Beacon Wave

Ready to adapt to any live situation. Compact and wired, Mini-Beacon Waves are always powered on and have a battery life of approximately 8 hours. Powered by the QC Stringers.

The Mini Beacon Wave provides a solution for customers who need a discreet placement option for the mini beacon. The MB Wave can be kept in a pocket with a thin stringer cable extending to a visible point on the body. For example, a keynote speaker can place the beacon in their blazer or shirt pocket and pass the stringer to their collar, lapel, or through a shirt button.

This product is preferred by some users over the traditional Mini Beacon (MB) due to its combination of a traditional beacon approach with a stringer, using the smaller Mini Beacon as the battery source.

Flathead Stringers

Improved tracking accuracy to keep performers reliably in focus. Easily sewn onto costumes for a discreet and secure attachment. Better diffusion compared to standard SMA Stringers.

BlackTrax by CAST
BlackTrax by CAST

Beacon Charging Station 2.0

Stay in control with live battery status, ID names, and diagnostics—all at a glance. Now featuring live reprogramming of Beacon IDs directly from the dock (no server needed!) and USB-C charging for faster turnaround between shows.

BT-3 Server

  • BlackTrax’ mid-range server suitable for tracking volumes as large as 1,200 sqm
  • x3 Outputs (for lighting, media, audio, PTZ Cameras, etc)
  • x40 Unique IDs (x12-20 people, objects, scenic, animals, or vehicles
  • Cross compatible with BT hardware in any other BT-1 or BT-U system
BlackTrax by CAST

BlackTrax Server Comparison

BlackTrax by CAST
BlackTrax by CAST

Tracking Area
Tracking Type
Sensors
Unique IDs
Outputs
Fixtures

900 sq/m
6D
8
20
1
Unlimited

BlackTrax by CAST
BlackTrax by CAST

Tracking Area
Tracking Type
Sensors
Unique IDs
Outputs
Fixtures

1200 sq/m
6D
12
40
3
Unlimited

BlackTrax by CAST
BlackTrax by CAST

Tracking Area
Tracking Type
Sensors
Unique IDs
Outputs
Fixtures

54,000 sq/m
6D
50+
255
6
Unlimited

BlackTrax Server Comparison

BlackTrax by CAST
BlackTrax by CAST
BlackTrax by CAST
BlackTrax by CAST
BlackTrax by CAST
BlackTrax by CAST

Tracking Area

900 sq/m

1200 sq/m

54,000 sq/m

Tracking Type

6D

6D

6D

Sensors

8

12

50+

Unique IDs

20

40

255

Outputs

1

3

6

Fixtures

Unlimited

Unlimited

Unlimited

BlackTrax Systems

Software

BlackTrax is an advanced tracking software solution designed to empower creative professionals in live events, virtual production, and interactive installations. It seamlessly integrates with lighting, audio, video, and automation systems, enabling dynamic control of moving elements across diverse production environments. Whether it’s enhancing stage performances, immersive experiences, or complex media setups, BlackTrax optimizes workflows for reliable, cutting-edge results.

BlackTrax Systems

Innovate Without Limits

  • Fly RC drones into the air, with projection mapping
  • Project a trail effect or light up a dancer while dancing or running.
  • Automate robotic cameras zoom, focus, pan and tilt.
  • Control Augmented Reality objects
  • Control kinetic systems like DMX winches
  • Gamified events
  • Automate scenery or prop movements based on performer location

Through combining both BlackTrax and CONVRG into one cohesive software architecture, we’re not only
continuing our mission to set new standards for Real-Time Tracking technology, but we’re ensuring
accessing this level of precision and efficiency is within reach. Whether in the grandeur of large stadiums or
the intimacy of small TV studios, our commitment is to provide productions with technology that flawlessly captures moments.

All Elements of Your Production in Perfect Sync.

CONVRG

BlackTrax Systems

Our Work

Creativity Awaits.
